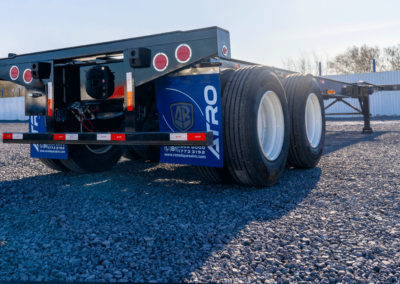

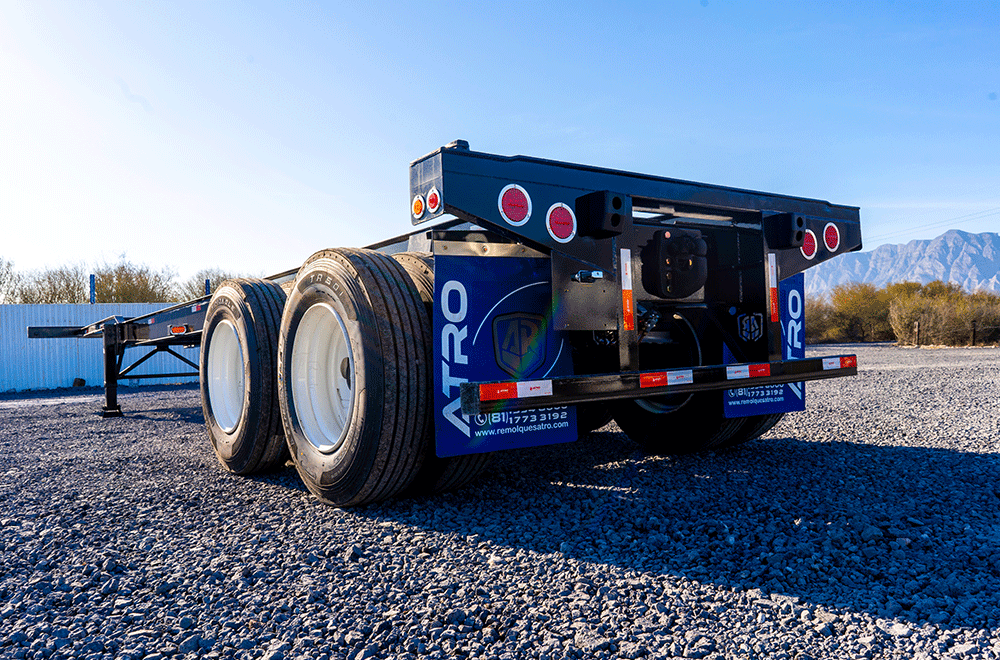

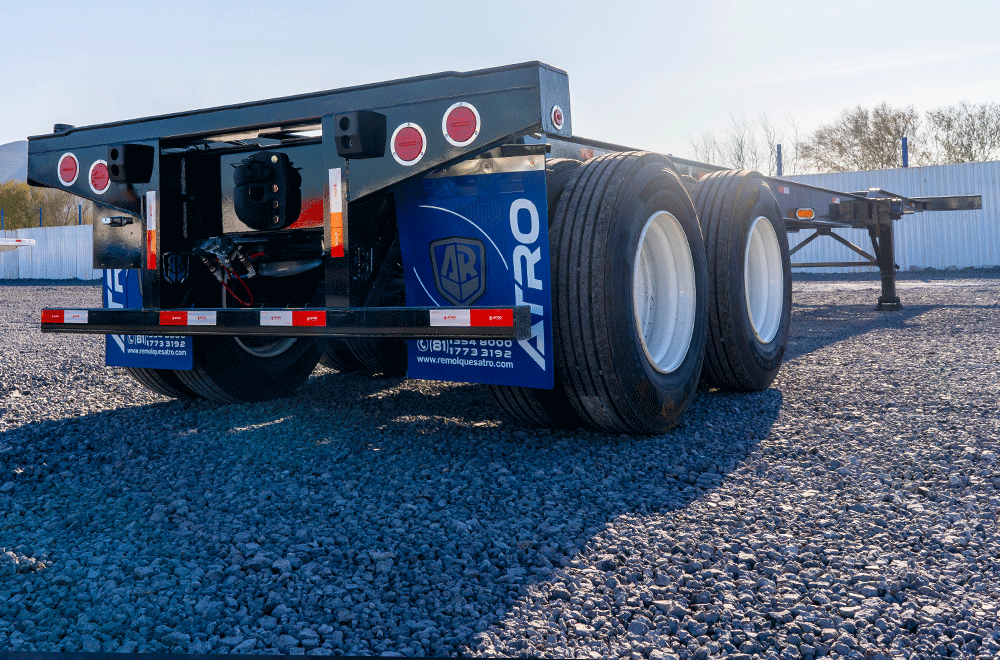

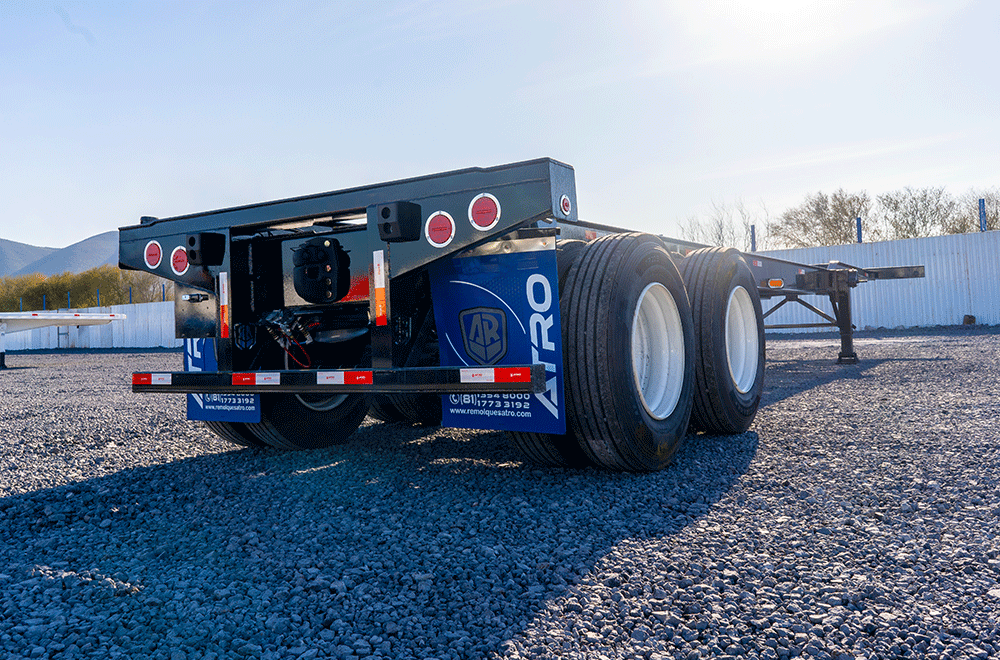

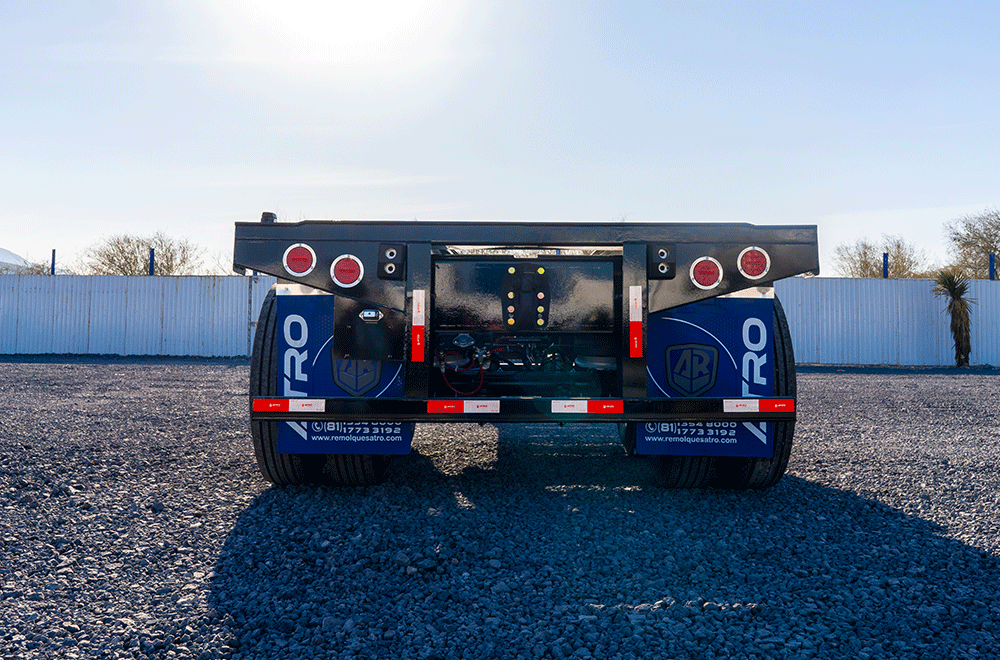

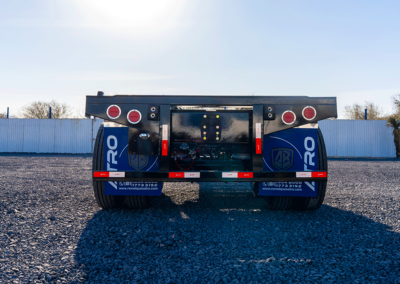

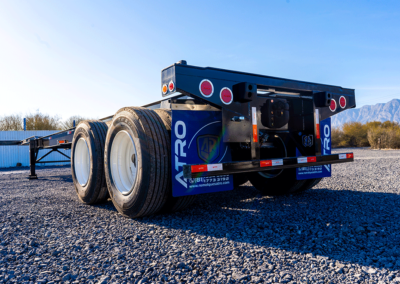

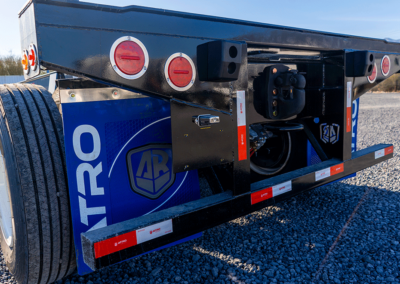

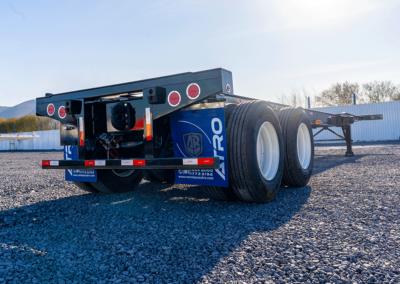

40’ Gooseneck 2-axles chassis
carries one 40’ ISO container
GVWR: 68,000 Lbs.
Total length: 40 Ft.
Width exterior: 102.36’’
Rear height: 48’’
Weight: 4,830 KG
1 (800) 830-4891
TIRES & WHEELS
Tire Manufacturer: Triangle
Tire Size: 295/75R22.5
Wheel Material: All Steel Wheel
Wheel Size: 8.25 x 22.5
SUSPENSION
Sampa Brand: 2 axles Pneumatic (30,000 lb) grease lubrication
Brackets: ABS 2S/1M
ELECTRICAL
12 volt, 7-way split pin receptacle plug; modular wiring harness
MISCELLANEOUS
Mud Flaps: 24″ x 30″ Blue plastic Atro Brand
GENERAL SPECS
Tare weight: 10,580 lb.
Steel and fasteners: All structural steel is ASTM-A572, Grade 50, or ASTM-A60
Main Beams: Fabricated I-beam with high-tensile steel
Crossmenbers: Fabricated steel
Upper coupler: 3/8’’ ASTM A-36
LANDING GEAR
AAR-approved two speed with square leg. 55,000-lb. lift capacity and 160,000-lb. static load capacity.
PAINT/FINISH
Metal Preparation: “Commercial Sandblast Cleaning”
Primer: Zinc-rich primer
Topcoat: Black urethane
