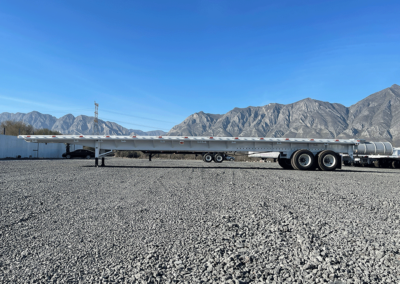

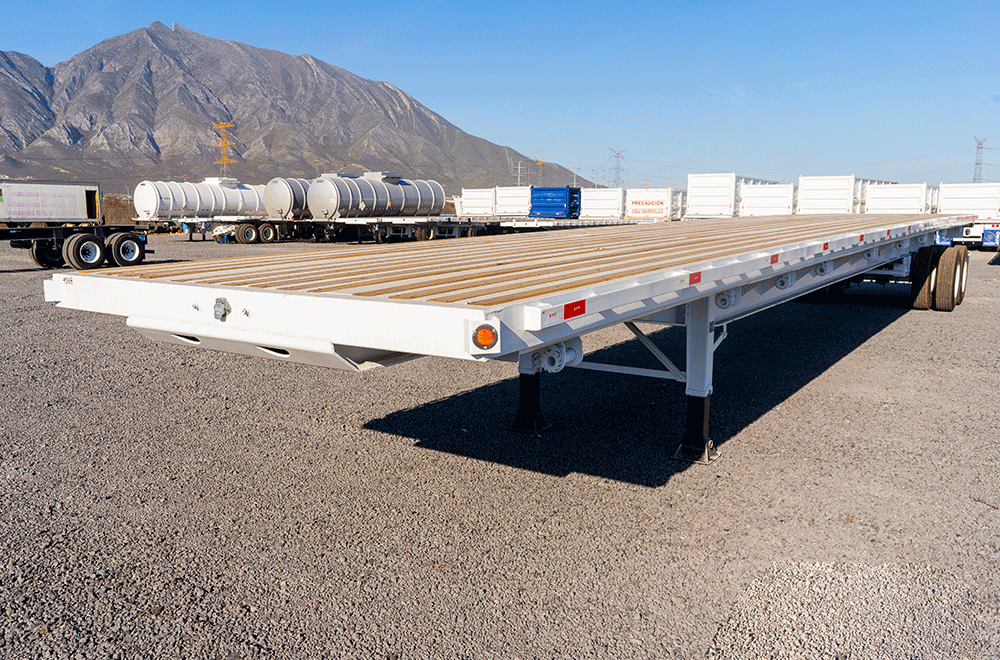

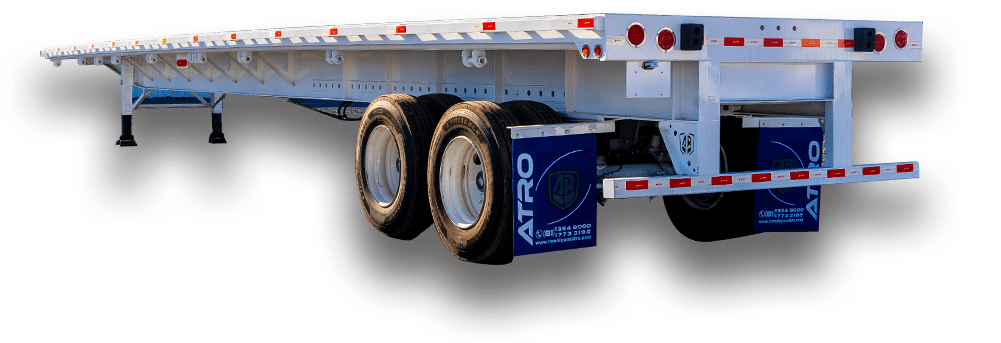

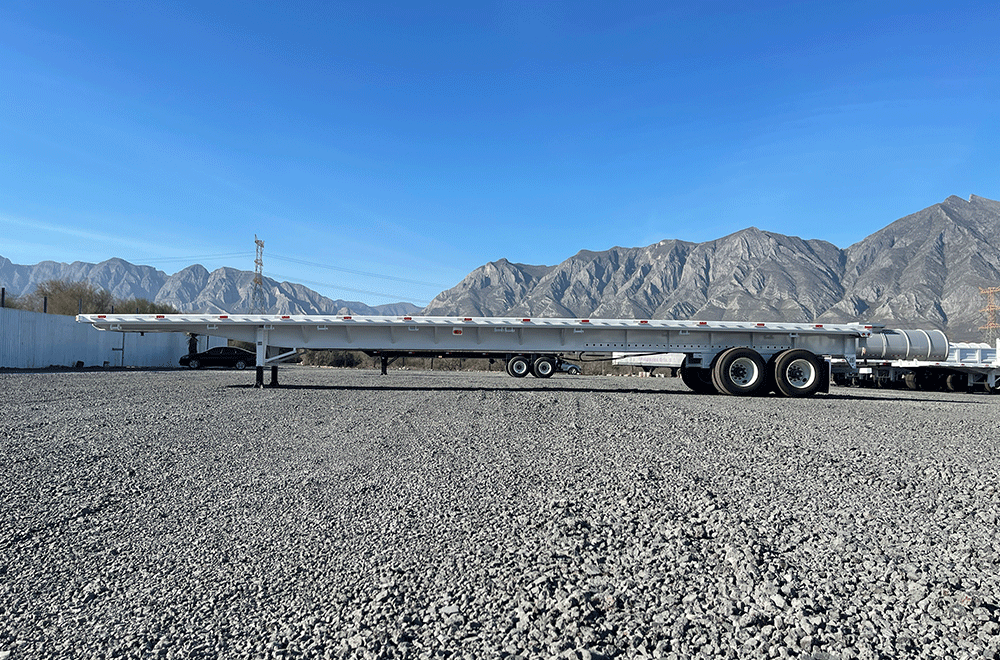

STEEL FLATBED 53′ X 10′
Width: 8FT 6’’
Tare Weight: APPROX. 15,741 Lbs
Height: 5FT
Overall Length: 53FT

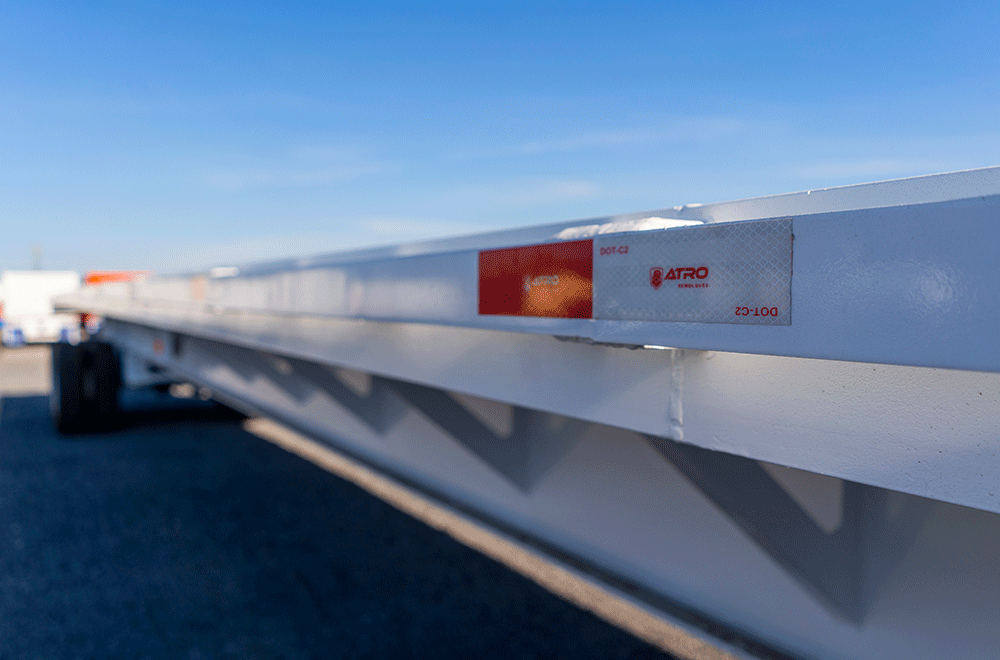

Conspicuity: Meets DOT requirements
1 (800) 830-4891

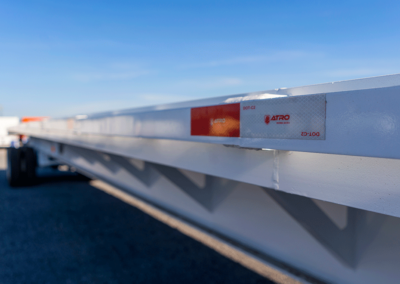

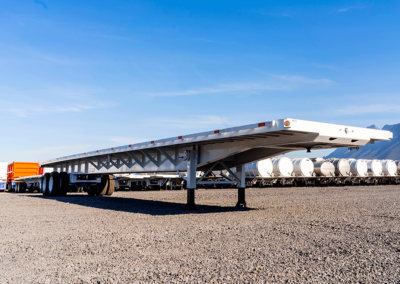

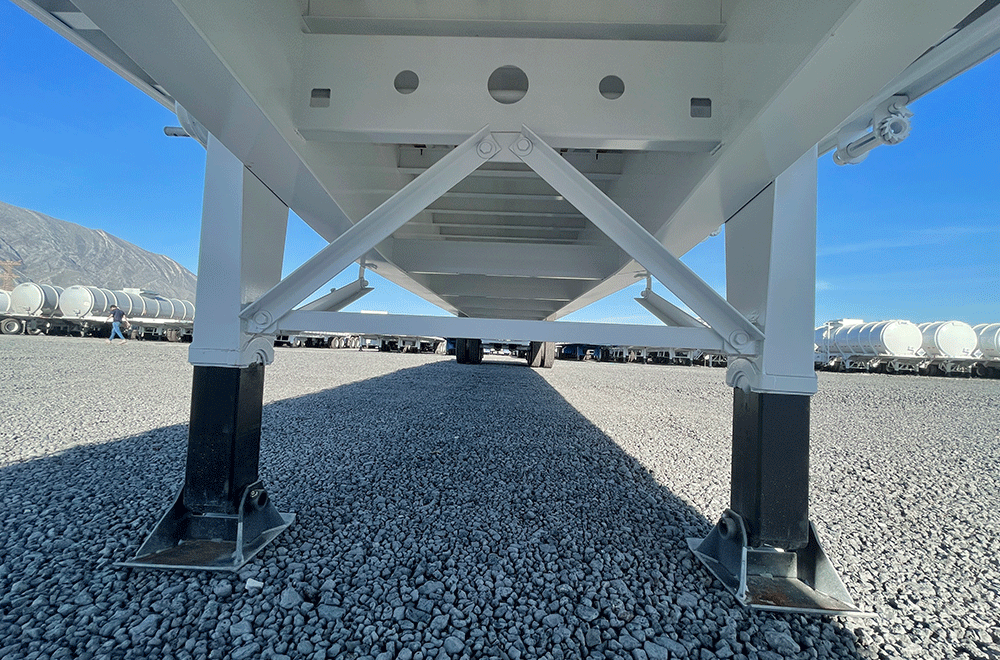

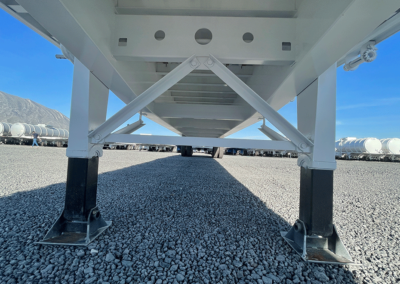

CHASSIS MATERIAL
Main beams in high resistance 5 mm plate
1/2” thick x 6″ wide top and bottom flanges
Side rails are steels 6’’ structural C
12’’Crossmember spacing
SUSPENSION
Sampa 300T air suspension

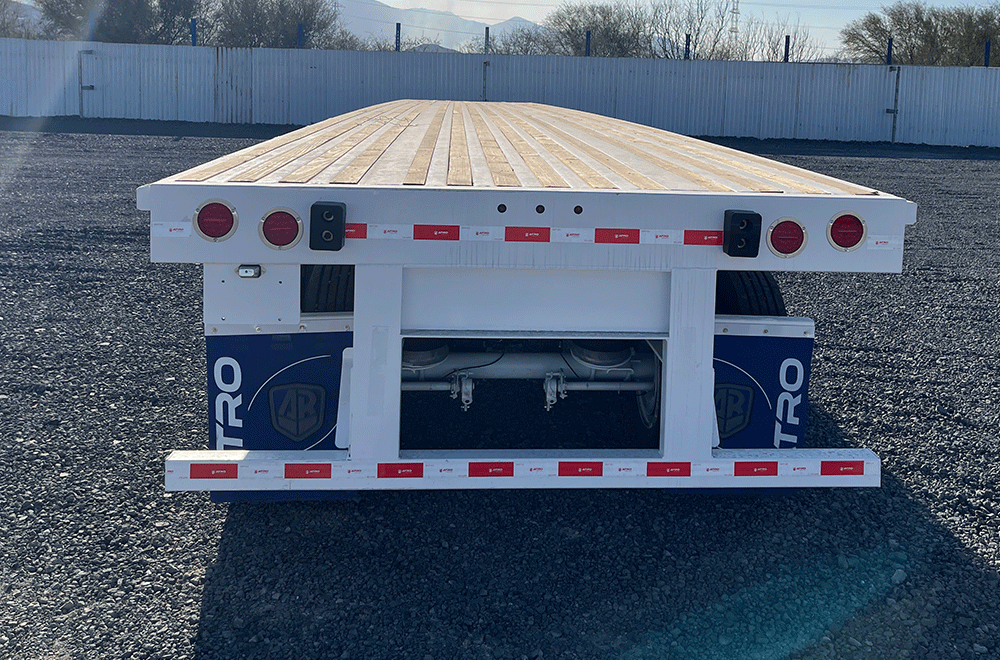

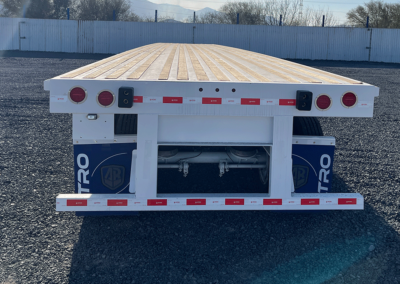

LIGHTS
Imported led type lights.
CATEGORY SPECIFIC

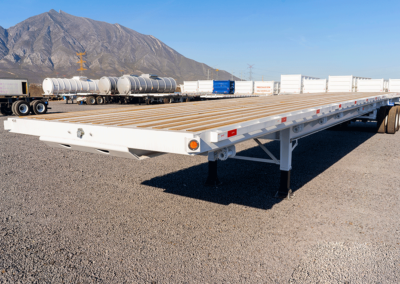

With pine wood floor and steel omega
30» distance from header to center of kingpin

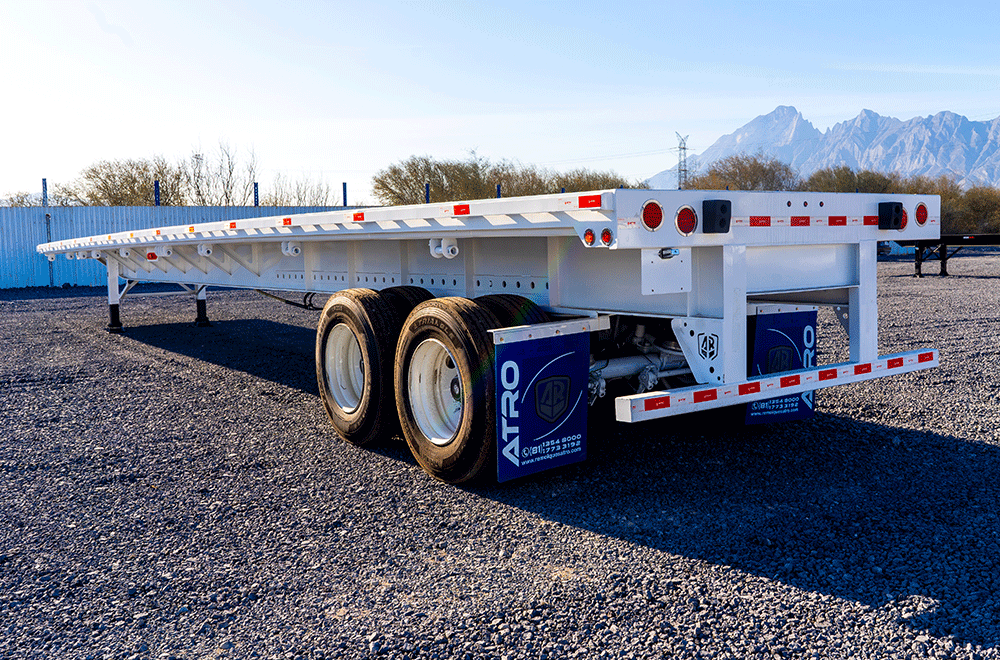

Closed tandem air ride slider with 49” axle spacing

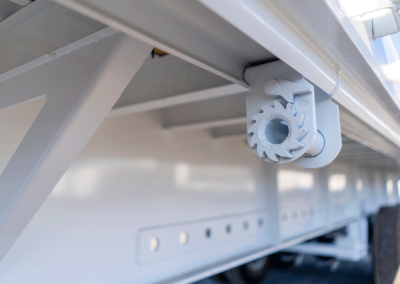

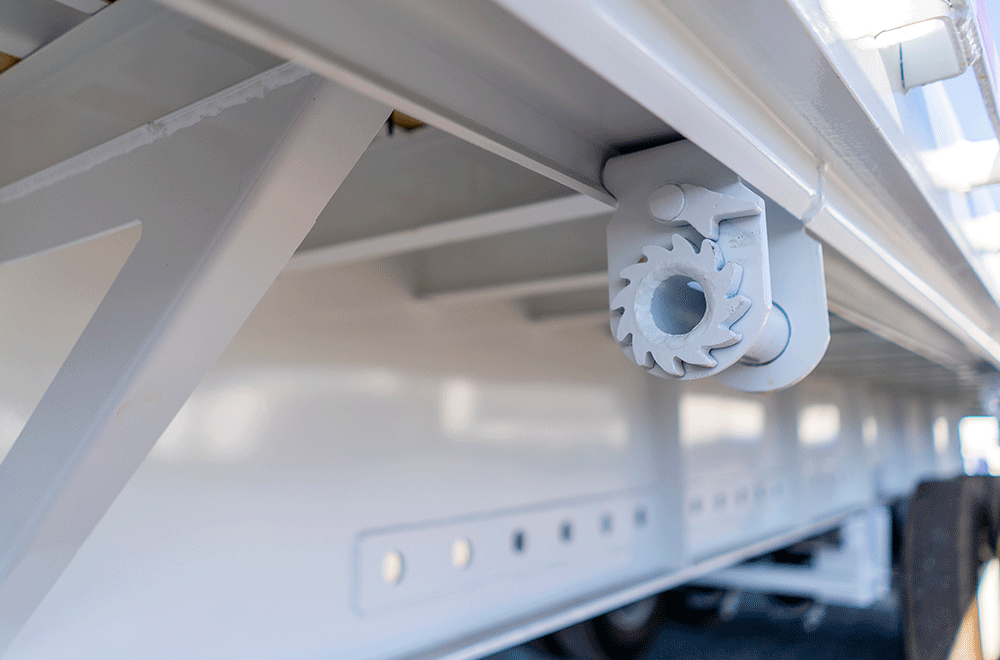

Winch track drivers side with 12 sliding winches
With/double pipes spools between stake pockets
WHEELS
10 Hole budd wheels powder coated white
AXLES
Two (2) 30,000 lbs., 102 in. wide, 77.5 in. track, with automatic slack adjuster
Brakes: Air brakes with two boosters
TIRES
Eight size 11R22.5 TRIANGLE
EXTERNAL COATING
One layer of high solids polyurethane
Paint prep: all steel surfaces sandblasted inside and out
